Urban microclimate simulation explained

6 minutes read.

Microclimate simulation to ensure effective use of trees, building shapes etc. for climate mitigation planning of cities.

There are a number of different effects with complex dependencies to consider when looking at urban microclimate. Here we take a look at a concrete simulation and discuss what’s going on. These effects are what enables us to plan green cities with high quality of living. Simulations are the foundation that show us in concrete numbers how urban planning and zoning helps us to mitigate urban climate change.

Before we dig deeper here is a short video that quickly goes over a number of factors that can be seen in our simulations. The video is a straight screencast of a simulation shown in RheoView, our 3D viewer that comes with every microclimate simulation to facilitate team collaboration and make the results more accessible.

Time is fleeting…

The single biggest influence factor for microclimate is the sun, respectively its path across the sky. In our microclimate simulations, we simulate time dependent, meaning we calculate how the wind flows through the area and the sun moves across the sky for an entire day. Usually, when we are looking at urban climate change mitigation we want to see the effects when it is hottest, which is often around 14:00 local time. The video above, as well as the images below show the situation at this single point in time even though the simulation itself covers the entire day1.

Of course the sun is not the only thing about the local microclimate that changes over the day, also wind velocity, humidity and air temperature change and of course our simulation accounts for that and likewise adjusts these values at the inflow into our simulation domain as simulation time passes. The values themselves come from historic hourly weather data, usually an average of the last 10 years.

Trees in urban microclimate simulation.
Trees and bushes can have arbitrary shape and can often be imported from public databases, as shown here.

The many functions of trees in urban microclimate

Trees fulfill a number of important functions in urban microclimate. First, they create shade - sun rays generate heat where they hit a surface, when they do so at a height above pedestrian level, this heat is kept away from where it would impact negatively on the perceived temperature. Because of this heat, trees need to evaporate water to stay cool, the same strategy that the human body uses to cool down. This also cools down the air surrounding the trees, which helps to lower the air temperature on hot days.

Lastly, trees also direct and reduce wind flow. The flow is slowed down by the leaves, which helps to keep cool air from being blown away immediately. This is one of the reasons, why a whole tree canopy is much more effective at cooling than a single tree. Depending on their shape, trees have another benefit on hot summer days: they increase wind flow at pedestrian level, generating a cooling breze. Air is pushed aside by the crown of the tree, which results in higher wind velocity under the tree, which makes people feel cooler2.

Absolute humidity in courtyard with trees - urban microclimate simulation.
Absolute humidity from evapotransporation by trees in Rheologic microclimate simulation.

Free, evaporative cooling

As long as there is moisture in the ground3 all plants evaporate water to cool themselves - and the surrounding air - by evapotranspiration. We are using tried and tested values from scientific literature and agricultural experience to set the factors for evapotranspiration. Saturation of the air also plays a factor - the closer the air is to 100% relative moisture, the less a plant will evapotranspirate and the cooling effect becomes smaller even if there is plenty of water to evaporate.

Note, that while the absolute humidity is not directly influenced by air temperatures, the relative humidity is. Colder air can hold less water, so with same amount of water in the air, colder air will feel more humid than hotter air. This can be seen in the simulation: our buildings are relatively cold (like on a hot spring day for example), which results in cool air especially downwind in the vicinity of buildings and therefore higher relative humidity.

Sun, shadow and surface temperatures

While incoming solar radiation is the main influence factor on surface temperatures, it is far from the only one. Surfaces also have different albedo4, they exchange heat when they are in direct contact (e.g. houses with soil) and also the air transfers heat to surfaces. Naturally if a surface is evaporating water (grass, foliage) this also influences its temperature.

Temperature of various urban surfaces in microclimate simulation.
Temperature of various urban surfaces in microclimate simulation.

As we have mentioned earlier, shadows move with the sun in the simulation and the amount of time a certain point on a building facade is shielded from the sun, for example by trees, will influence its temperature over time. Conversely there are surfaces, that have high exposure to the sun - especially southward-facing, slanted roofs which become much hotter than other surfaces. This is typically the case for penthouse constructions. In these cases our simulations are even indicating where the construction would benefit energetically from additional insulation to prevent excessive heatup of the interior.

All these effects combine to the picture we see in our simulation, where areas in the shadow, out of the wind and with vegetation tend to be the coolest.

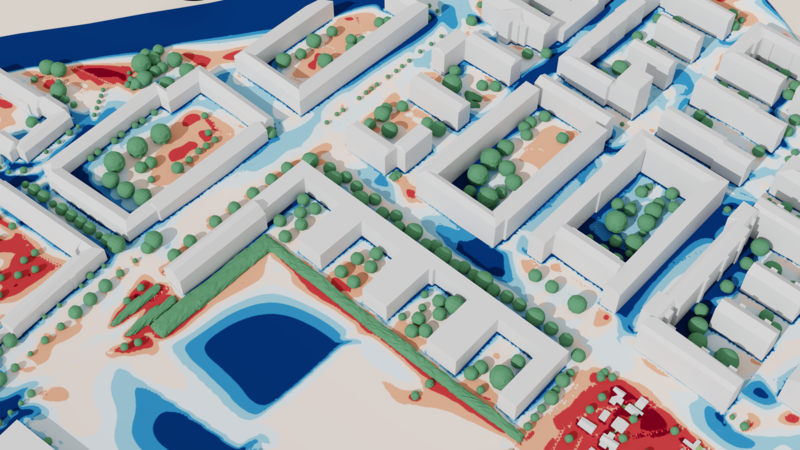

Air temperature in urban microclimate simulation, including effects of solar radiation, evaporative cooling from plants etc.
Air temperature in urban microclimate simulation, including effects of solar radiation, evaporative cooling from plants etc.

Temperature vs. apparent temperature

The actual local air temperature at pedestrian level is influenced by all the factors above and can easily vary several degrees due to influence of architecural design and landscaping. Even higher differences can be seen in the apparent temperature, which describes how a certain place feels. This metric captures all the mentioned factors (sun / shadow, air temperature, wind velocity, humidity) and shows how a place will actually feel like under the simulated conditions. Even though this may seem somewhat subjective, it is undeniably a huge factor for quality of living and heat stress mitigation. Just imagine how different if feels when moving from the parking lot on a hot sunny day into the shade of a big tree and a light breeze setting in - this is excatly what apparent temperature expresses in numbers.

Felt temperature at pedestrian level including effects of solar radiation, wind velocity, air temperature and humidity.
Felt temperature at pedestrian level including effects of solar radiation, wind velocity, air temperature and humidity.

The better this can be managed in a city overall, the less people will want to install air conditioning systems, as explained in our article about the influence of air conditioning on urban climate. There are a number of places where extra care should be taken to get this right: open areas near hospitals, playgrounds for small children, retirement homes, waiting ares for public transport and local recreation areas to name a few.

Apart from the health impact, the design of high quality outdoor environments is also important for economic reasons. Retail complexes, outdoor dining areas, esplanades and similar areas where it is economically desireable that pedestrians / customers encounter conditions that invite to linger, all benefit from thoughtful urban design, landscaping and zoning. Wind especially can also quickyl become a hazard, which is why we do offer pedestrian wind comfort / danger analytics. Tall buildings that often cause downdrafts and narrow street canyons can be especially dangerious, for children, elderly and infirm persons, but also for cyclists, if bike lanes happen to run through areas with high wind velocity.

Wind velocity and streamlines in urban microclimate simulation.
Wind velocity and streamlines in urban microclimate simulation.

Lastly, where urban landscaping and buildings cannot create ideal conditions, the information gained from microclimate simulations is helpful for placemaking and zoning since it allows to plan the use cases for an area in accordance with microclimatic conditions, giving urban planners the right tools for their work. A place that is a bit too windy to sit and read a newspaper, might be ideal for sports for example. We can tell you where these places are.

If you’d like to involve us in the planning of your project, let us know! To get a better idea of what you’ll get, take a look at our urban microclimate service page!

  1. We are also able to calculate night-time cooling and can do multi-day simulations, e.g. to show slower effects like the heating of entire buildings and to simulate maximum night-time temperatures

  2. Higher wind velocities allow moisture on our skin to evaporate faster, making sweating more effective. As long as the air temperature is below the body temperature, also the direct cooling effect helps, though to a much lesser extent than the evaporation cooling.

  3. Its a safe assumption that in a well-managed urban environment plants do have enough water either from rain or by active watering.

  4. The amount of incoming radiation that is reflected back. The higher this value, the less a body warms up from radiation. Generally speaking, brighter surfaces (snow, white houses) reflect more radiation than dark surfaces.
